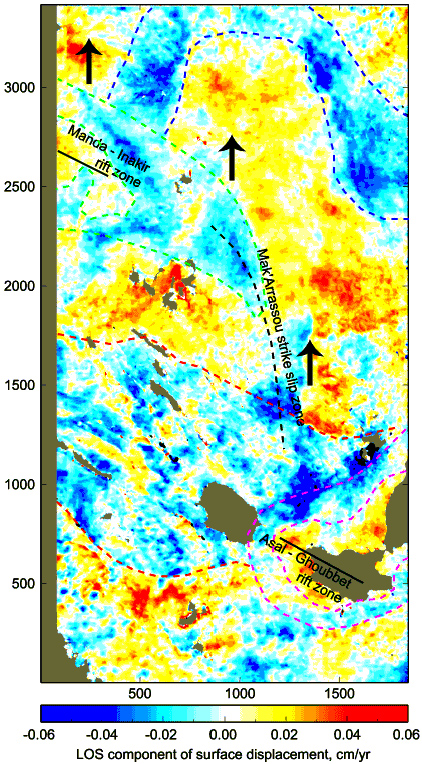

Figure 4. Displacement field (line-of-sight direction component) derived from SAR interferometry. Solid and broken curves indicate tectonic lines; Asal - Ghoubbet rift zone, Mak’Arrassou strike slip zone and Manda - Inakir rift zone. Solid arrows indicate the plate motion direction of Danakil microplate (Chu and Gordon, 1998) with respect to Somalia plate (Jestin et al., 1994). Purple, red, green and blue broken curves show the schematic crustal deformation features. For details, see text.
|
