6-6. NETWORK-MT Project

 NETWORK-MT is one of the major components of the Earthquake Prediction Program. This experiment aims to reveal the mean nation-wide distribution of electrical conductivity in the Earth. Major experimental efforts focus on measuring electric field variations over 10-30 km distances using commercial telephone lines. Scientists from eleven universities and institutions in Japan are collaborating in this project.

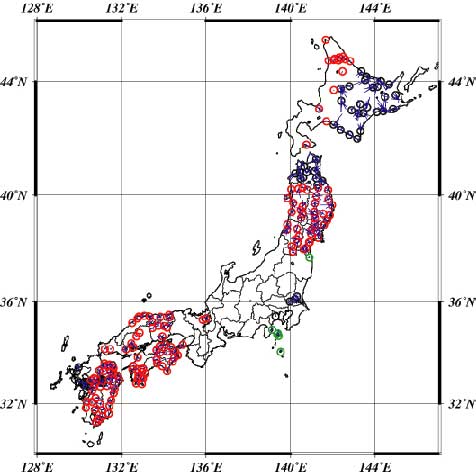

Fig.1. Cumulative plots of the sites in which NETWORK-

MT observations were made since 1994 under the Earthquake Prediction Research program (in red circles). Green circles indicate the sites of continuous monitoring of the telluric voltage differences. Measurements in other areas were taken in 1989-1993 in other projects.

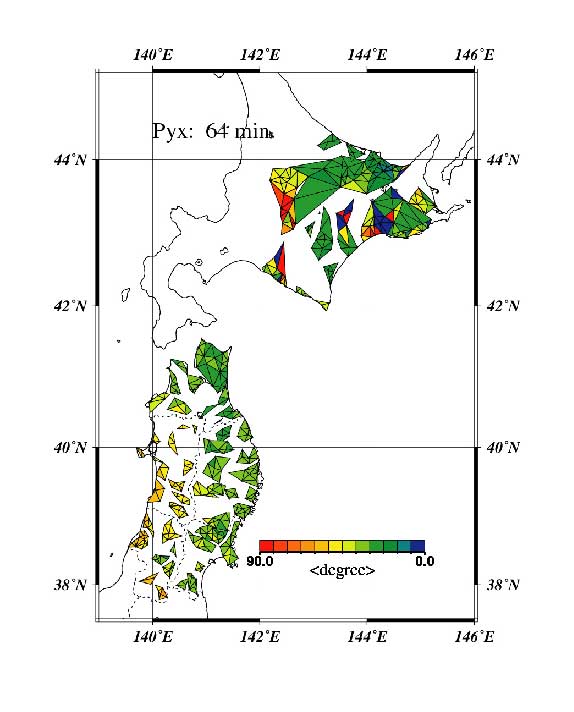

Fig.2. Spatial distribution of phase of Network-MT impedances in NE-Japan (period: 64 minutes). Impedances, whose electric and magnetic field directions are respectively EW and NS, are shown here. Larger phase value indicates the existence of lower resistivity bodies in the deeper portion. Such high phase values are detected in the backarc side of Tohoku district along the strike of the Tohoku arc.
