2019 Yamagata earthquake【QE】

Last updated : 20th September, 2019
Website launched: 21st June, 2019

An earthquake 6.8 Mw(according to JMA) occurred on 18th June 2019 at 10:22 p.m. JST,  off the coast of Yamagata Prefecture, northwest Japan.

*All figures/pictures/movies should be credited as: “Earthquake Research Institute, The University of Tokyo” when cited.


Aftershock distribution of the earthquake off Yamagata Prefecture in 2019 by using OBS and land seismic station network (updated 2019/09/20)

(Masanao SHINOHARA )

We carried out a seafloor observation of aftershocks just above a source region of the earthquake (Mw 6.4) occurred off Yamagata Prefecture on June 18th, 2019. Because the seafloor above the source region has shallow depths, we have developed a new handy seafloor seismic observation system using anchored buoy. The observation period is from 5th to 13th, July. Temporary land seismic stations were installed on the coast of Honshu. We could obtain precise aftershock distributions using the marine-land seismic network. As a result, almost all the aftershocks have depths between 2 km and 12km, and the aftershocks form a plane dipping toward southeast. The dipping plane is inferred to represent the source fault of the mainshock. We acknowledge the cooperation of local fishery group. This observation was carried out with Tohoku University and Kyoto University as a part of Earthquake and Volcano Hazards Observation and Research Program (2nd).

Fig.1 Distribution of seismic stations. Circles show a seafloor stations, and data from a seafloor station indicated by black circle are not available for the analysis. Red squares and red inverted triangles deny temporary land stations and permanent land stations, respectively. A star shows epicenter of the mainshock and grey circles indicate aftershock by JMA from June 18th to August 18th.

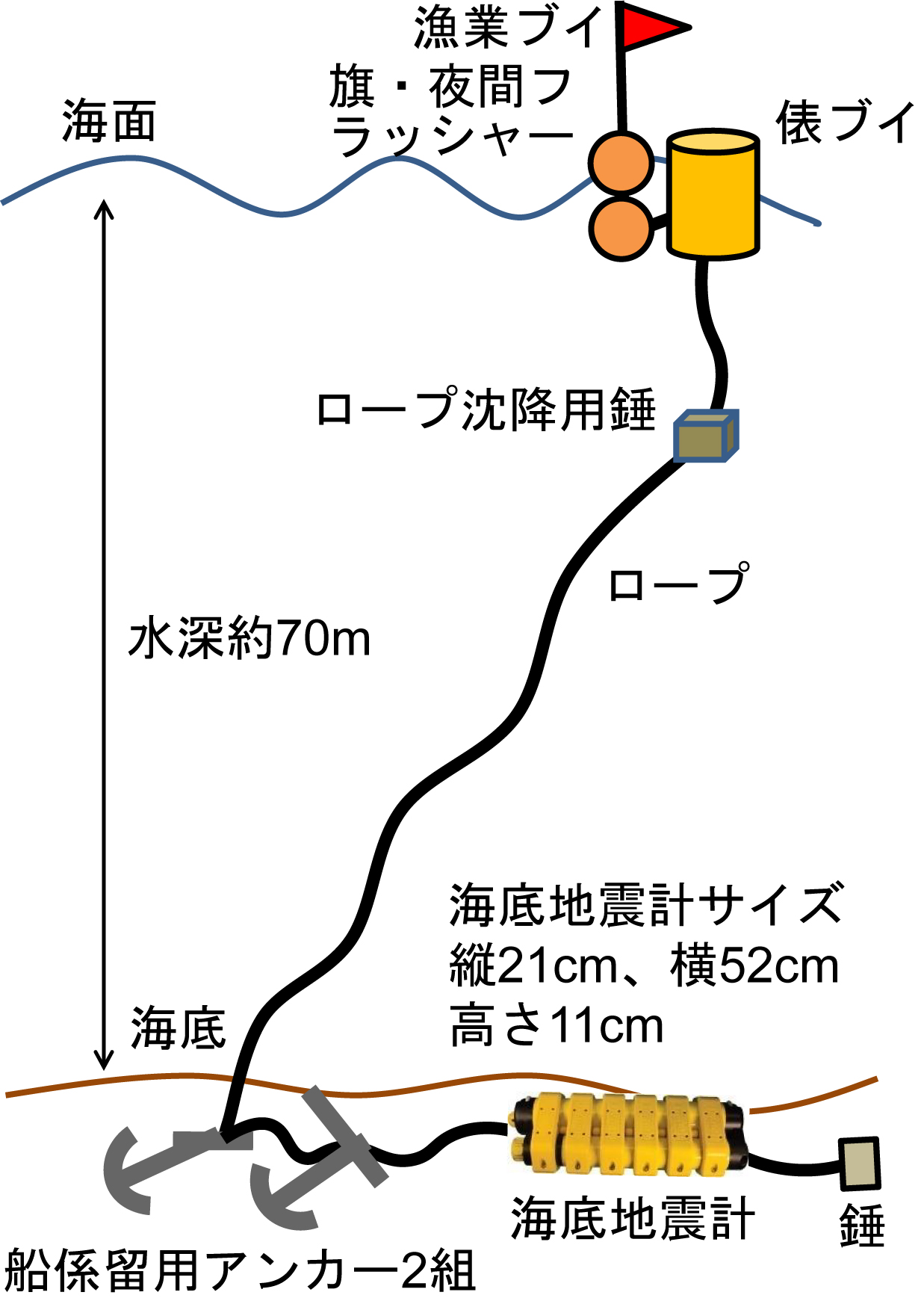

Fig.2 System diagram of the seafloor seismometer using anchored buoy. Because the sensor package has a height of 11 cm and the flat shape, a seafloor water current is estimated not to make a large seismic noise by shaking the package.
Fig.2 Preliminary aftershock distribution by using the data from the marine-land seismic network. red circles and rec squares indicate seismic stations for the analysis. Almost all the aftershocks have depths between 2 km and 12km

Simulation of seismic wave propagation for the M6.7 Off Yamagata earthquake of 18 June 2019
(Shunsuke TAKEMURA and Takashi FURUMURA)

To investigate properties of the seismic wave propagation during the 2019 Off Yamagata earthquake (M6.7) of 18 June 2019, we conducted a numerical simulation of seismic wave propagation by using a source model of the NIED AQUA CMT and a 3D subsurface structure model (Fig. 1). The simulated seismograms for periods of 12.5-100 s agreed well with observed ground motions at F-net stations (Fig. 2). Simulated seismic wavefield demonstrates that strong ground motions spread from the seismic source to east-southeastward and west-northwestward directions due to effect of source radiation pattern. Then, strong amplifications and elongation of ground motions occurred in thick sedimentary basins (e.g., Toyama, Niigata, Shonai and Kanto basins; see Fig. 1).

Fig. 1. Seismic wave propagation obtained by the numerical simulation. Red and green colors represent intensities of P and S waves, respectively.

Fig. 2. Simulated seismograms using a source model of AQUA-CMT from NIED (blue focal sphere in the map) and a 3D subsurface structure model (Koketsu et al. 2012). Simulated and observed seismograms are illustrated by blue dashed and gray solid lines, respectively. A band pass filter (12.5-100 s) is applied.

Acknowledgement: We used NIED AQUA-CMT catalog and F-net data. Numerical simulation of seismic wave propagation was conducted by using an open 3D finite-difference code (OpenSWPC; Maeda et al. 2017).
